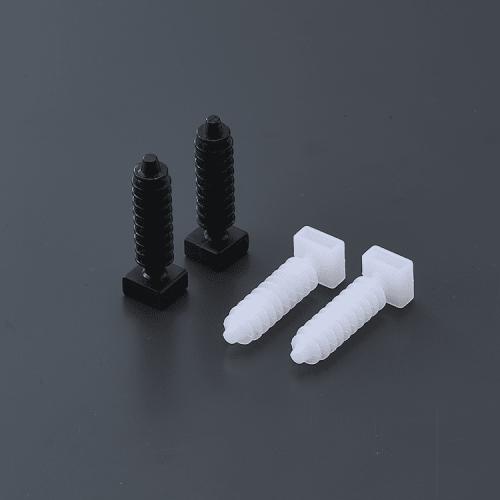

Masonry Cable Tie Mounts

 Description

Cable tie screw mounts are designed to easily attach to any drillable surface. 4 Way bases provide a low-profile mount where height may be limited; while 2 way bases provide a narrow cable mount for crowded surface areas. Identify your application needs and apply mounting bases for an easy solution to secure cables.
Material: Nylon 66(PA66)

Application:Suitable for indoor and outdoor installations in various materials, including concrete, brick and wood surfaces. The anchor is installed by driving it into a pre-drilled hole.

Technical Parameters

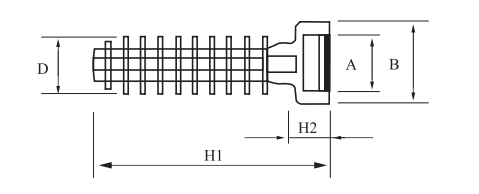

Item No.	A	B	H1	H2	D
	mm	mm	mm	mm	mm
LFMC-6	9.6	12.7	37.6	5.85	6.9
LFMC-8	9.6	12.3	41.83	6.0	8.78
