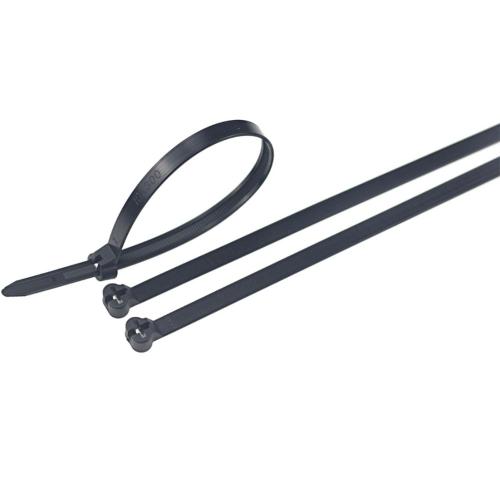

Nylon Metal Barb Ties
Size: 4 x 200 mm
Width: 4 mm (0.16 inch)
Length: 200 mm (8 inches)
Tensile Strength(min): 18 kg (40 lbs)
Bundle diameter: 3 - 50 mm
Material: Nylon 66(PA66)
Meterial-Metal Barb: Stainless Steel Grade 304 or 316
Flame Class: UL 94V-2
Operation Temp:-35°C~+85°C
Certificates: CE, ROHS, SGS
Color: Nature or Black
Application: Stainless steel metal tooth locking mechanism
Description
◆ Material：Nylon 66, 94V-2 certificated by UL. Acid & erosion control, insulate well and not easy to aging、tensile strong.
◆ Application temperature：-40℃ to 85℃.
◆ Installation temperature：-35℃ to 85℃.
◆ Color: Natural,Black,UV black and other colors are available as requested.
◆
Flexible But Durable: Maximum flexibility of the material and resilient
lock design ensure the ideal combination of flexibility and durability,
thereby ensuring that these zip-ties are well-suited and convenient for
the widest possible range of uses.
◆ Indoor And Outdoor Use: Ideal
for both indoor use, as well as the unique challenges presented by the
outdoors (including ice, rain, snow, heat and direct sunlight).
◆
Temperature Resistant: Versatile and well suited for use in the widest
possible range of temperatures (from -31F to +195F (-35C to +90C))
◆ High Quality Nylon 66: Superior quality, heavy-duty industrial strength material (Nylon 66) guarantees that these zip-ties are stronger than others on the market.
Technical Parameters
|
Item No. |
L |
W/MM |
Max.Bundle Dia.(mm) |
Tensile Strength |
||
|
INCH |
MM |
LBS |
KGS |
|||
| LFST-3×100 | 4″ |
100 |
3 |
22 |
18 |
8 |
| LFST-4×150 | 6″ |
150 |
4 |
35 |
40 |
18 |
| LFST-4×200 | 8″ |
200 |
4 |
50 |
40 |
18 |
|
LFST-5×250 |
10″ |
250 |
5 |
65 |
50 |
22 |
|
LFST-5×300 |
12″ |
300 |
5 |
80 |
50 |
22 |
|
LFST-8×145 |
6″ |
145 |
8 |
35 |
120 |
54 |
|
LFST-8×175 |
7″ |
175 |
8 |
44 |
120 |
54 |
| LFSF-8×200 | 8″ |
200 |
8 |
50 |
120 |
54 |
| LFSF-8×240 | 10″ |
240 |
8 |
62 |
120 |
54 |
| LFST-8×300 | 12″ |
300 |
8 |
80 |
120 |
54 |
| LFST-8×400 | 16″ |
400 |
8 |
105 |
120 |
54 |
| LFST-10×300 | 12″ |
300 |
10 |
80 |
180 |
80 |
| LFST-10×350 | 14″ |
350 |
10 |
90 |
180 |
80 |
| LFST-10×400 | 16″ |
400 |
10 |
105 |
180 |
80 |
| LFST-10×450 | 18″ |
450 |
10 |
130 |
180 |
80 |
| LFST-10×550 | 22″ |
550 |
10 |
165 |
180 |
80 |
| LFST-10×600 | 24″ |
600 |
10 |
170 |
180 |
80 |
-
